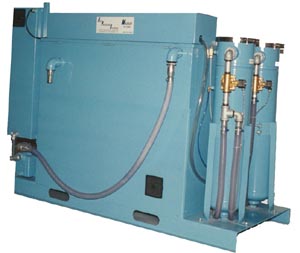

HPS - Series 20






Standard System Configuration

  • Safety Equipment Emergency Stop Button
  • Safety System Pressure Relief Valve (Fixed)
  • Safety Relief / Pressure Regulating Valve (Adjustable)
  • Safety Pressure Dump Valve Standard
  • Safety High Pressure Shut Down Switch
  • Safety Interface To Machine Tool Causes Slide Hold At Fault Condition
  • Over Pressure Alarm Light
  • Drive Fault Alarm Light
  • Motor Over Load Alarm Light
  • Low Charge Pressure Alarm Light
  • Low Coolant Level Alarm Light
  • Dirty Filter Alarm Light
  • Operating Pressure Gage
  • Filter Inlet Pressure Gage
  • Filter Outlet Pressure Gage
  • Main Tank Overflow Connection And Hose
  • Visual Filter Differential Indicator
  • Electric Filter Differential Pressure Switch
  • Fully Enclosed Cabinet With Acoustic Sound Deadening
  • Auto Fill Controls
  • Two (2) M-Code Controlled High Pressure Outlets
  • Accumulator For Pulsation Dampening
  • Standard 5 Micron Filtration
  • One (1) 8" x 36" Filter Housing With Removable Bag
  • One (1) Spare 8" x 30" Filter Bag (5 Micron)
  • Inlet Filtration 300 Micron Standard
  • One Spare Inlet Filter (300 Micron)
  • Main Tank Drain (Ball Valve Style)
  • Four (4) Isolation Feet With Leveling Adjusters
  • Twelve (12) Feet Of Power And Interface Cable Standard
  • One (1) Twenty (20) Foot High Pressure Hose
  • Color Blue High Gloss Paint
  • Laminar Flow Oil Separation
  • Filter Feed Pump
  • 220 Volt 60 HZ 3 Phase Power
  • PLC Controlled Electronics
  • 75 Gallon Main Tank
  • Warranty One (1) Year Parts And Labor
MODEL GPM

PSI

TANK

VARIABLE DRIVE

SKIMMER

OUTLETS
8-1000

8

1000

75 GAL

NO

OPTION

1

8-1000V

8

1000

75 GAL

YES

OPTION

1

8-1000W

8

1000

75 GAL

NO

OPTION

1

13-1500

13

1500

75 GAL

YES

OPTION

1

15-1000W

15

1000

150 GAL

NO

OPTION

1

20-1000W

20

1000

150 GAL

NO

OPTION

1

20-1500

20

1500

150 GAL

YES

OPTION

1



Optional Accessories

  • W Models Are Wheel Industry Specials
  • Tramp Oil Skimmer
  • Dual Filters
  • Transfer Pump
  • Auto Crossover
  • Dual Pressure
  • Additional Outlets
  • High Pressure Hose
  • 480 Volt Option
  • High Pressure Manifold
  • Rotary Union
  • Turret Plunger
  • Smart Tank




High Pressure Systems
will build a custom system tailored to your needs. Contact us today for a Magnum Series quote.
