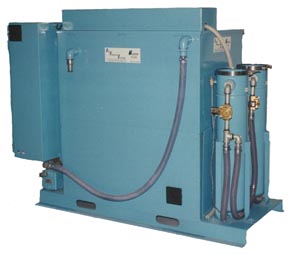

HPS - Series 40 |
|
|
|
Standard System Configuration
- Safety Equipment Emergency Stop Button
- Safety System Pressure Relief Valve (Fixed)
- Safety Relief / Pressure Regulating Valve (Adjustable)
- Safety Pressure Dump Valve Standard
- Safety High Pressure Shut Down Switch
- Safety Interface To Machine Tool Causes Slide Hold At Fault Condition
- Over Pressure Alarm Light
- Drive Fault Alarm Light
- Motor Over Load Alarm Light
- Low Charge Pressure Alarm Light
- Low Coolant Level Alarm Light
- Dirty Filter Alarm Light
- Operating Pressure Gage
- Filter Inlet Pressure Gage
- Filter Outlet Pressure Gage
- Main Tank Overflow Connection And Hose
- Visual Filter Differential Indicator
- Electric Filter Differential Pressure Switch
- Fully Enclosed Cabinet With Acoustic Sound Deadening
- Auto Fill Controls
- Two (2) M-Code Controlled High Pressure Outlets
- Accumulator For Pulsation Dampening
- Standard 5 Micron Filtration
- Two (2) 8" x 36" Filter Housing With Removable Bag
- Two (2) Spare 8" x 30" Filter Bag (5 Micron)
- Inlet Filtration 300 Micron Standard
- One Spare Inlet Filter (300 Micron)
- Main Tank Drain (Ball Valve Style)
- Four (4) Isolation Feet With Leveling Adjusters
- Twelve (12) Feet Of Power And Interface Cable Standard
- One (1) Twenty (20) Foot High Pressure Hose
- Color Blue High Gloss Paint
- Laminar Flow Oil Separation
- Filter Feed Pump
- 480 Volt 60 HZ 3 Phase Power
- PLC Controlled Electronics
- Large Main Tank
- Warranty One (1) Year Parts And Labor
| MODEL | GPM |
PSI |
TANK |
VARIABLE DRIVE |
SKIMMER |
DUAL FILTERS |
OUTLETS |
| 20-2000 |
20 |
2000 |
150 GAL |
YES |
STD |
STD |
2 |
| 20-3000 |
20 |
3000 |
150 GAL |
YES |
STD |
STD |
2 |
| 30-1000 |
30 |
1000 |
150 GAL |
YES |
STD |
STD |
2 |
| 30-1000W |
30 |
1000 |
150 GAL |
NO |
STD |
STD |
2 |
| 36-1000W |
36 |
1000 |
200 GAL |
NO |
STD |
STD |
2 |
| 40-1000 |
40 |
1000 |
200 GAL |
YES |
STD |
STD |
2 |
| 40-1500 |
40 |
1500 |
200 GAL |
YES |
STD |
STD |
2 |
Optional Accessories
- W Models Are Wheel Industry Specials
- Transfer Pump
- Auto Crossover
- Dual Pressure
- Additional Outlets
- High Pressure Hose
- 480 Volt Option
- High Pressure Manifold
- Rotary Union
- Turret Plunger
- Smart Tank
High Pressure Systems
will build a custom system tailored to your needs. Contact us today for a Magnum Series quote.
