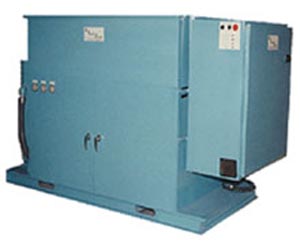

HPS - Series 75






Standard System Configuration

  • Safety Equipment Emergency Stop Button
  • Safety System Pressure Relief Valve (Fixed)
  • Safety Relief / Pressure Regulating Valve (Adjustable)
  • Safety Pressure Dump Valve Standard
  • Safety High Pressure Shut Down Switch
  • Safety Interface To Machine Tool Causes Slide Hold At Fault Condition
  • Over Pressure Alarm Light
  • Drive Fault Alarm Light
  • Motor Over Load Alarm Light
  • Low Charge Pressure Alarm Light
  • Low Coolant Level Alarm Light
  • Dirty Filter Alarm Light
  • Operating Pressure Gage
  • Filter Inlet Pressure Gage
  • Filter Outlet Pressure Gage
  • Main Tank Overflow Connection And Hose
  • Visual Filter Differential Indicator
  • Electric Filter Differential Pressure Switch
  • Fully Enclosed Cabinet With Acoustic Sound Deadening
  • Auto Fill Controls
  • Two (2) M-Code Controlled High Pressure Outlets
  • Accumulator For Pulsation Dampening
  • Standard 5 Micron Filtration
  • Two (2) 8" x 36" Filter Housing With Removable Bag
  • Two (2) Spare 8" x 30" Filter Bag (5 Micron)
  • Inlet Filtration 300 Micron Standard
  • One Spare Inlet Filter (300 Micron)
  • Main Tank Drain (Ball Valve Style)
  • Four (4) Isolation Feet With Leveling Adjusters
  • Twelve (12) Feet Of Power And Interface Cable Standard
  • One (1) Twenty (20) Foot High Pressure Hose
  • Color Blue High Gloss Paint
  • Laminar Flow Oil Separation
  • Filter Feed Pump
  • 480 Volt 60 HZ 3 Phase Power
  • PLC Controlled Electronics
  • Large Main Tank
  • Warranty One (1) Year Parts And Labor



MODEL GPM

PSI

TANK

VARIABLE DRIVE

SKIMMER

DUAL FILTERS

OUTLETS
16-1500

16

1500

150 GAL

YES

STD

STD

2

20-5000

20

5000

150 GAL

YES

STD

STD

2

80-500

80

500

500 GAL

YES

STD

STD

2

80-1000

80

1000

500 GAL

YES

STD

STD

2

100-1000

100

1000

500 GAL

YES

STD

STD

2

Optional Accessories

  • Transfer Pump
  • Auto Crossover
  • Dual Pressure
  • Additional Outlets
  • High Pressure Hose
  • High Pressure Manifold
  • Rotary Union
  • Turret Plunger
  • Smart Tank




High Pressure Systems
will build a custom system tailored to your needs. Contact us today for a Magnum Series quote.

Company Profile

The Daniluk Corporation has been in the machine tool rebuilding and retrofit business for over a decade. Our understanding of CNC machines and controls is unparalled in the high pressure industry today. With a staff of over 40 professionally trained machine tool technicians, we have the ability to adapt our systems to you machine tool whether it's old or new.


High Pressure Systems
A Division of the Daniluk Corp
8200 SW 29th
Oklahoma City, OK 73179
Office (888) 745-6647 & (405) 745-6644
Fax (405) 745-6646
